Handicaplift | Stationær | "F145B" | DigiProject

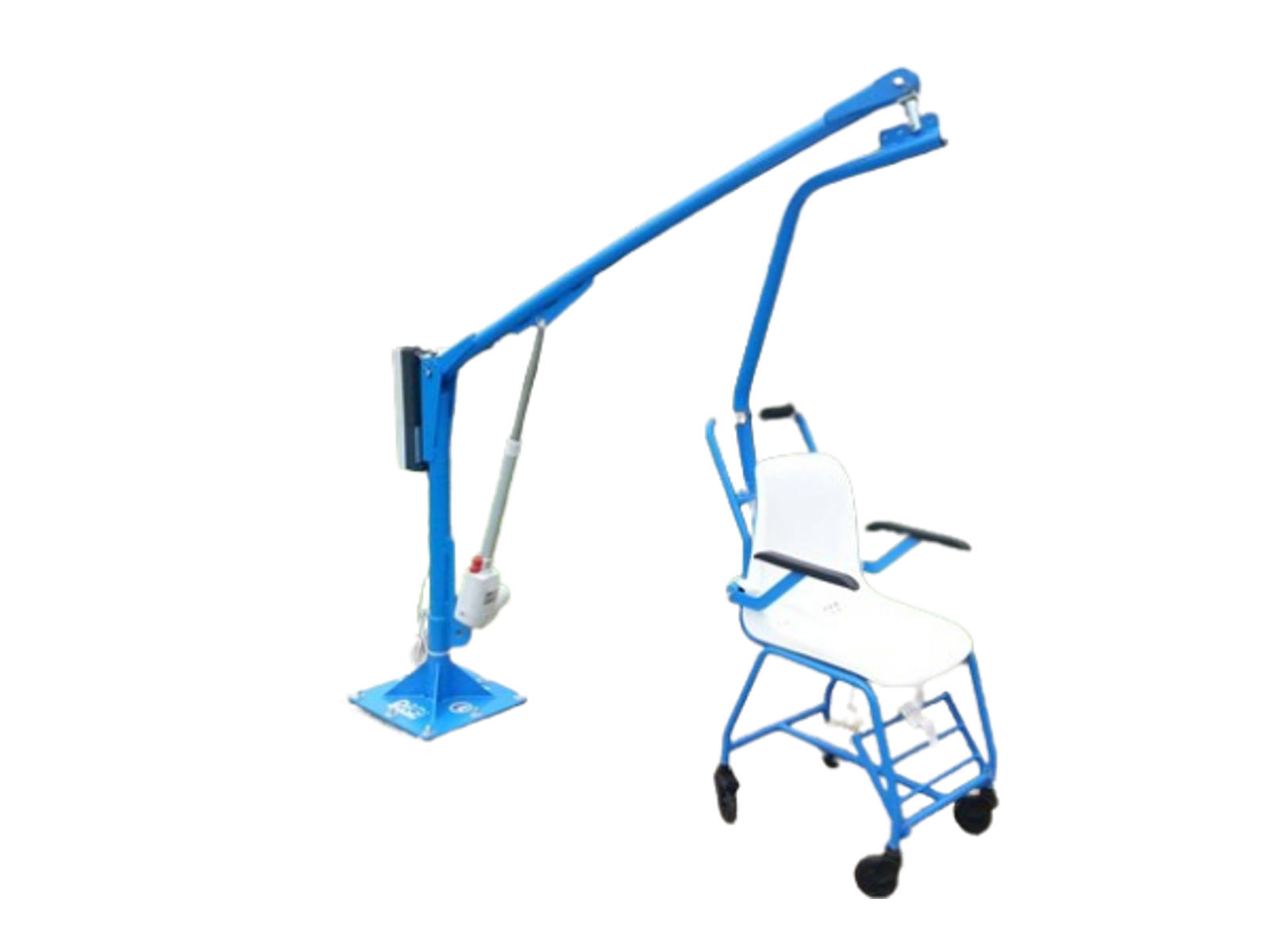

The fixed pool lift F145B is suitable for skimmer or ground deck pools. It can also be used for boats, ports, docks etc. This pool lift can be equipped with a seat+transporter or a sling or other customized devices.

The lift can be fixed to the floor by means of 3 different fixing plates: an external plate to be fixed with pins or a plate to be drowned in a 60x60x60 cm concrete block or, alternatively, a stainless steel bush.

The F145B is easy to remove from the edge of outdoor pools during winter period.

Link: http://www.digiproject.biz/pdf/f145.pdf

• Max. lifting capacity: 140kg
• Max arm travel (without support): 1350mm
• Time of lowering with weight: 40 sec.
• Time of lifting with weight: 40 sec.
• Weight: 63-58 Kg
• Zinc coated steel frame with powder coating finish
• Battery: 24V
• Power: 12V
• Electric box
• External battery charger
• Rotation: 360°
• Standard socket : 400×400 mm
• Handset
