Handicaplift | Stationær | "F130" | DigiProject

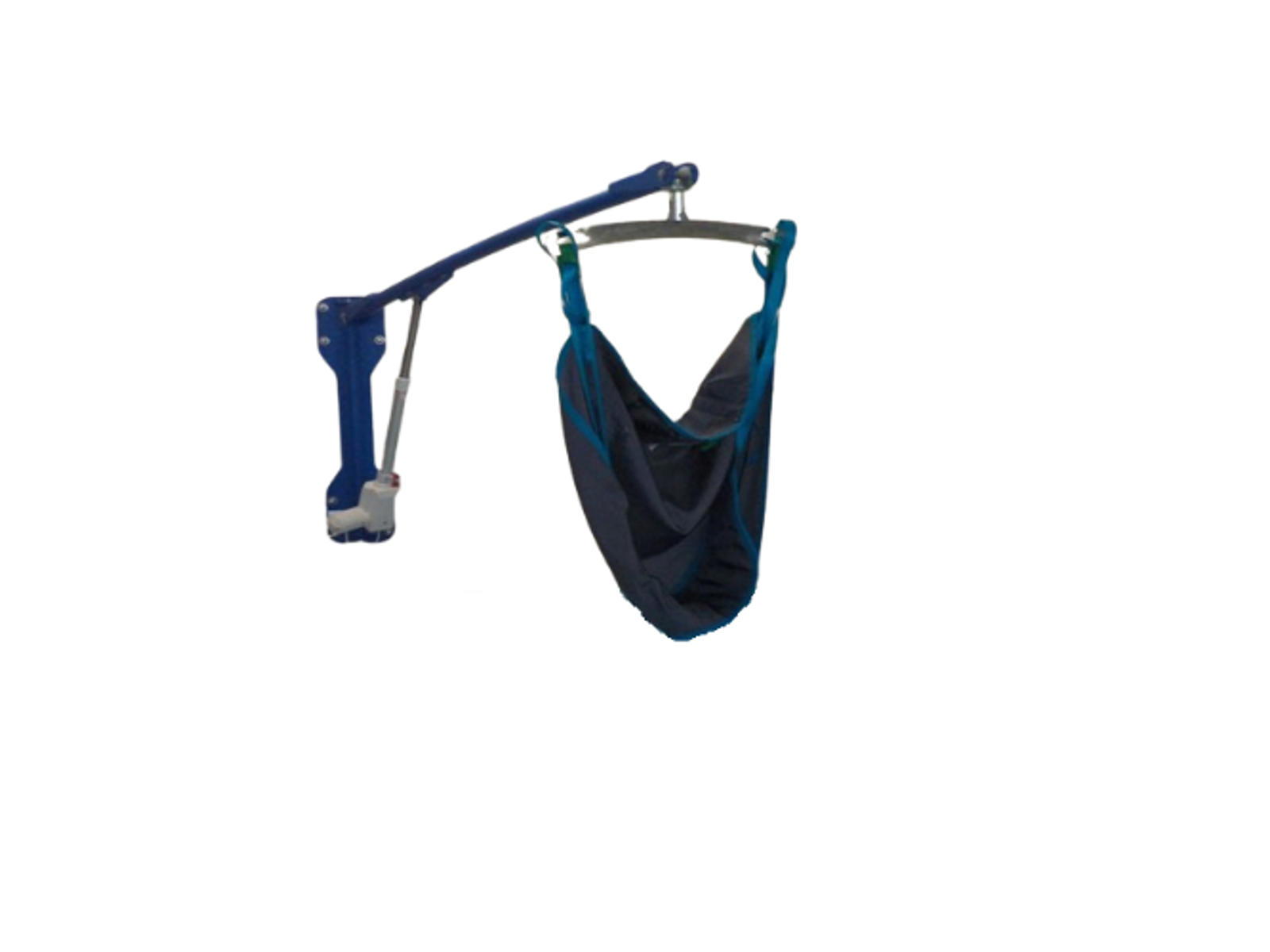

The F130 poolside lift allows fixing on main walls and is suitable for narrow spaces thanks to its “flag” structure, avoiding floor fixing. It is recommended for walled pools, therapy pools, jacuzzis,  mud bath, etc. The lift can be equipped with a seat+transporter or a sling. The anchorage has always to be made to a main wall made of stone or to a wall with more than 25 cm thickness by means of pins or safety counterplate.

Link: http://www.digiproject.biz/pdf/f130.pdf

• Max. lifting capacity: 140kg
• Max arm travel (without support): 1400mm
• Time of lowering with weight: 40 sec.
• Time of lifting with weight: 40 sec.
• Weight: 50 kg
• Zinc coated steel frame with powder coating finish
• Battery: 12V
• Power: 24V
• Electric box
• External battery charger
• Rotation: 160°
• Wall fixing plate: 90×20 cm
• Handset
