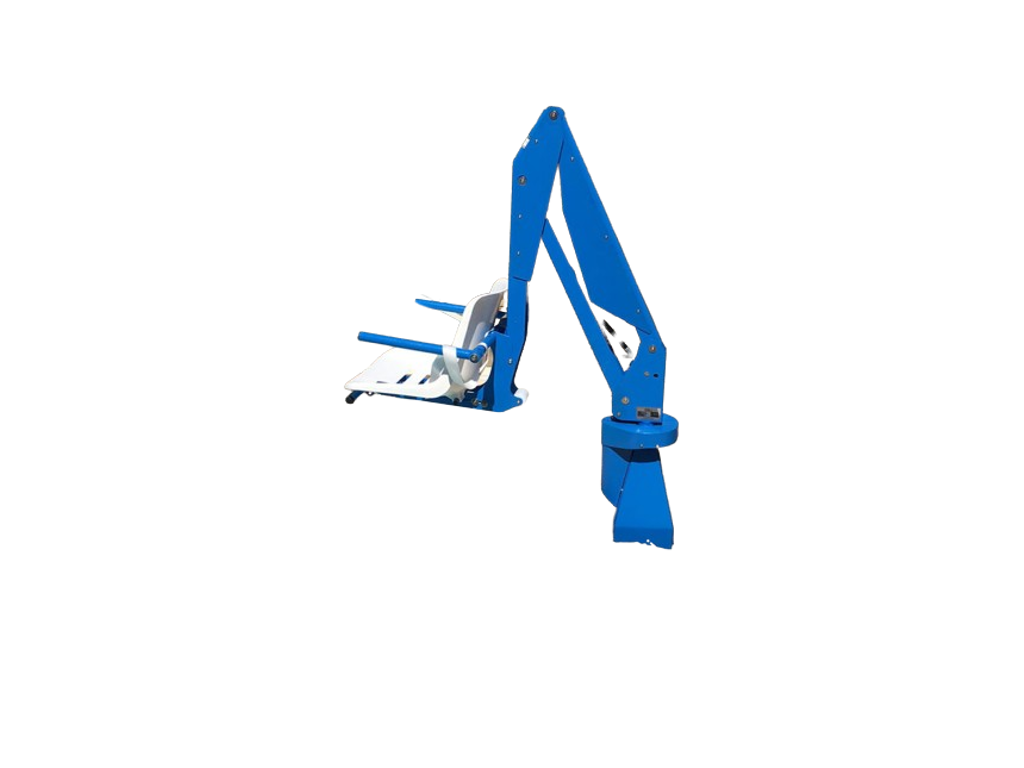

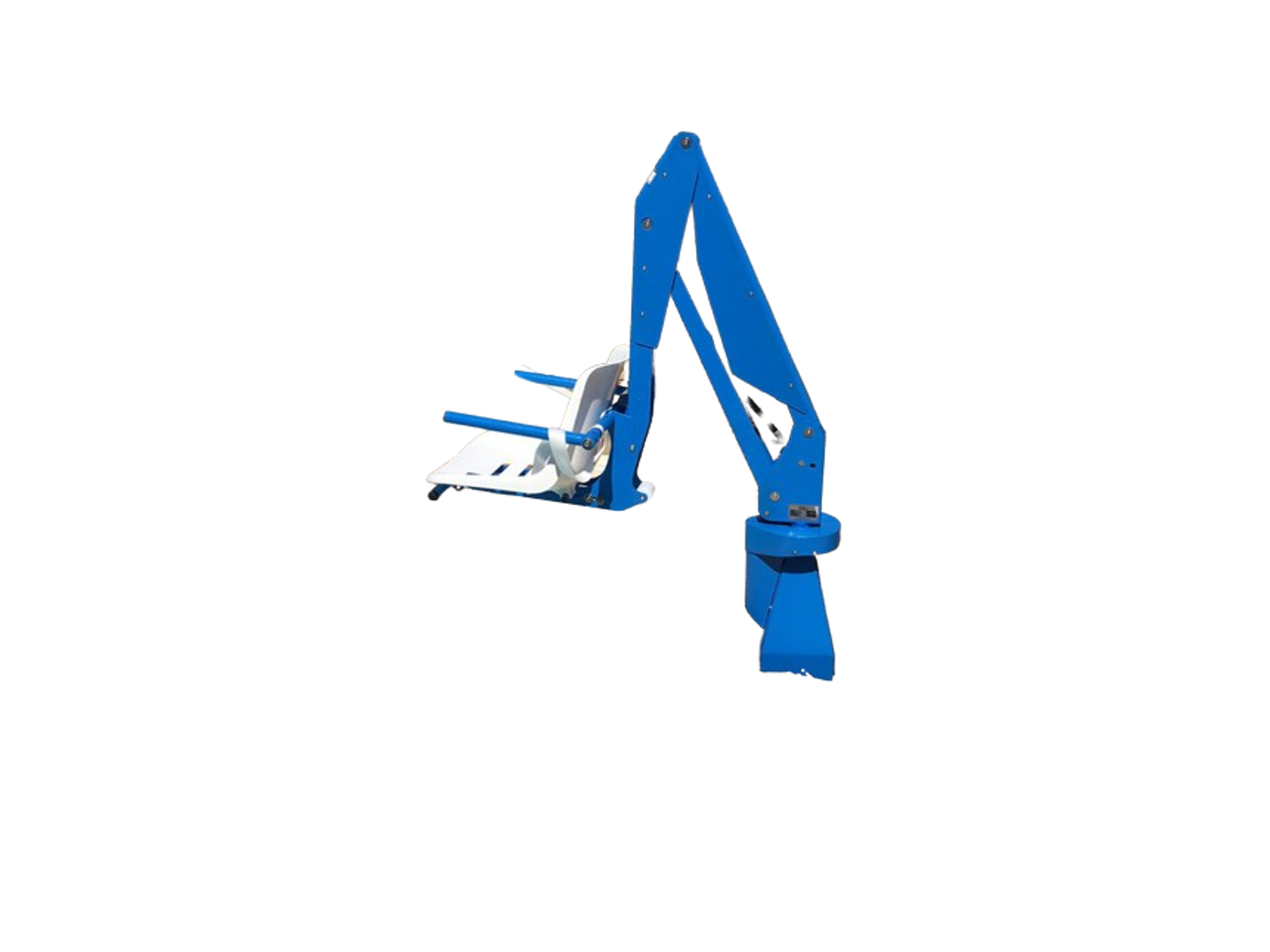

The F100M fixed pool lift, with a mechanical-automatic rotation, enables the disabled person to get into the water thanks to its solid and rotating structure. It is recommended for above ground outdoor pools either made of canvas, plastic or wood. It can be customized according to the type of pool and to the height.

The lifting arm rotation and up/down operations are driven by a hand control equipped of a spiral cable.

The anchorage has always to be made to a reinforced concrete floor by means of 8 pins or to a 60x60x60 cm concrete plinth.

Link: http://www.digiproject.biz/pdf/f100.pdf

• Max. lifting capacity: 140kg
• Max arm travel: 1150mm-250mm
• Time of lowering with weight: 23 sec.
• Time of lifting with weight: 17 sec.
• Weight: 100 kg
• Zinc coated steel frame with powder coating finish
• Battery: 12V
• Power: 24V
• Hydroelectric box
• External battery charger
• Rotation: 340°
• Rotation time: 30 sec.
• Ground fixing frame: 2 different levels available: 400 mm/ 600mm
• Handset and control box
